DESIGN : ASME B16.34
VALVE SIZE : 1/2" to 14" (15 to 300mm)

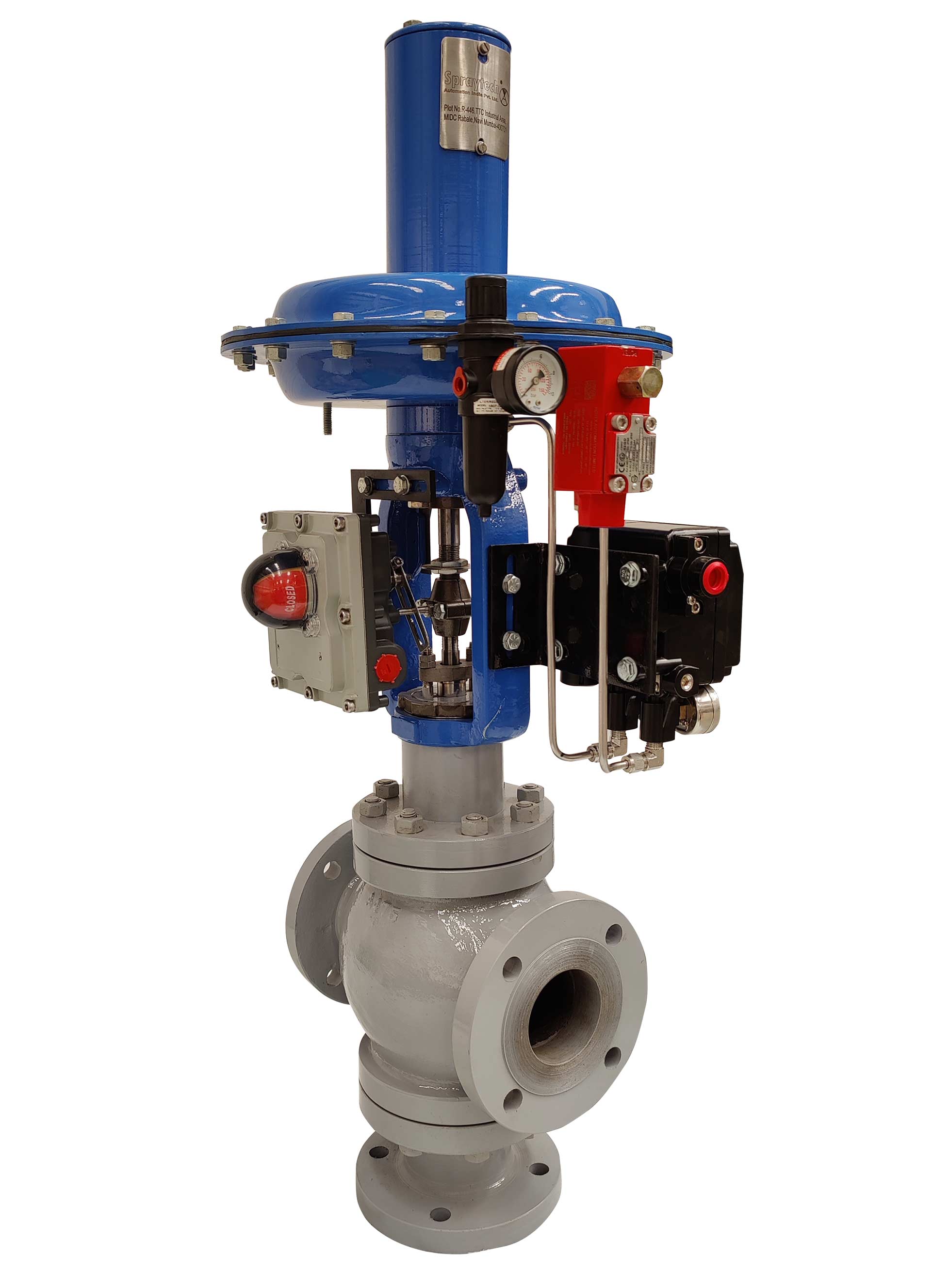

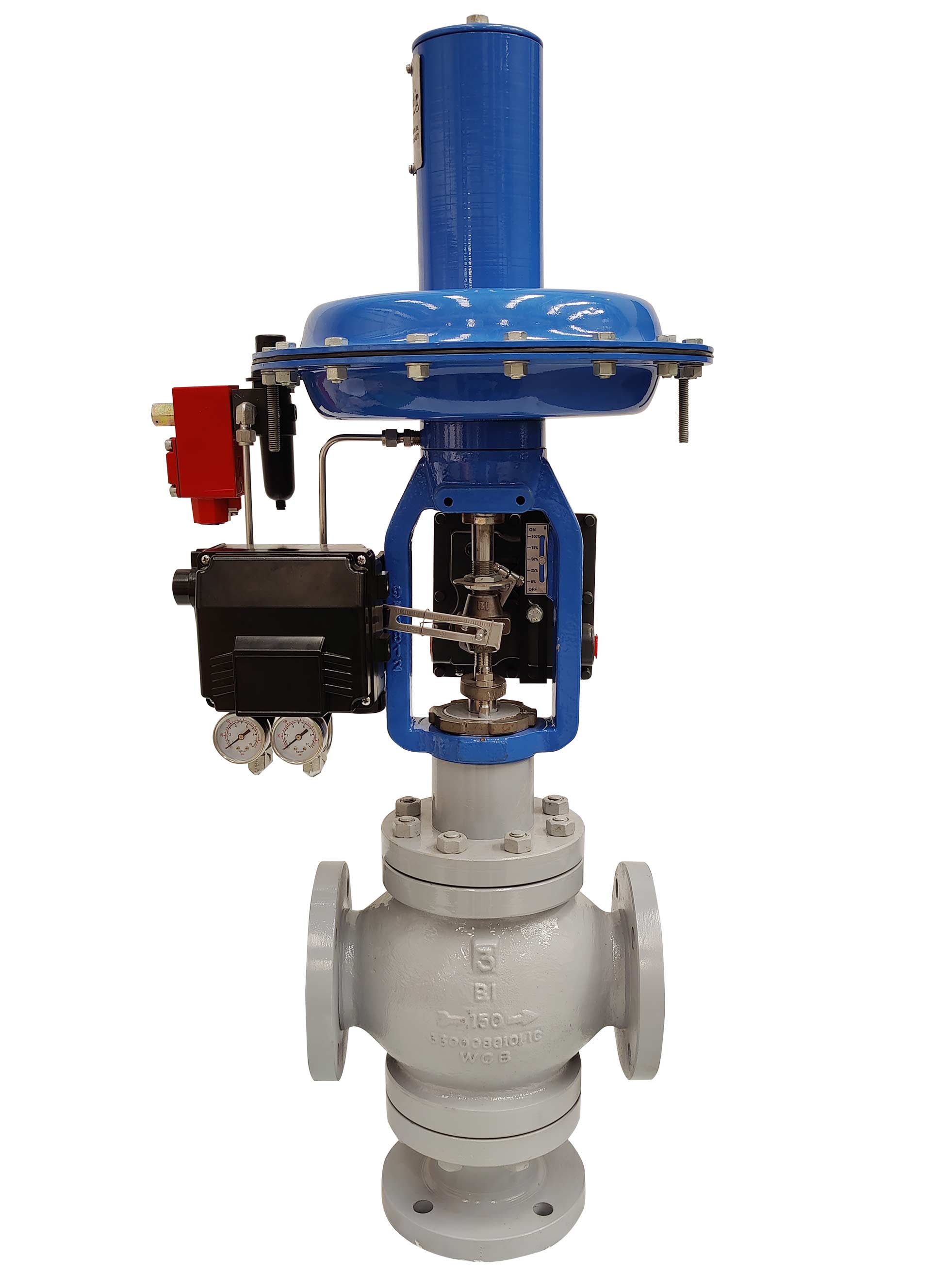

BODY FORM : Globe 3 Way Port With Tail Piece
RATING : 150# to 2500# ANSI (Other Rating Available On Request)
MATERIAL : Flanged, Screwed, Buttweld, Socketweld
MATERIAL : Carbon steel, Stainless Steel, Alloy Steel, Tefon lined etc. (Other Material Available On Request)
BONNET : Standard, Extended Finned, Bellow Sealed.
TRIM FORMS : Skirt guided, Trim with soft seated, Multihole plug trims.
FLOW : Mixing And Diverting.
FLOW CHARA. : Liner, On/Off
SEAT LEAKAGE : Class III, IV, V, & VI (FCI-70.2) Standard Leakage Rates. Metal to Metal Seating Class IV-less than 0.01% of rated Cv. Metal to soft Seating Class VI-Bubble tight (Zero Leakage).
GLAND PACKING : Grafoil or PTFE (As per Temperature)
ACTUATOR : Pneumatic Diaphragm, Piston or Electrical.
ACCESSORIES : Pneumatic Positioner, Electro Pneumatic Positioner, Limit Switch, SOV, Air lock relay, Volume Booster, AFR, Position Transmitter.
High Flow capacity and rangeability.
Heavy Duty top guide with additional skirt guiding on the plug.
Heavy Duty ground and polished stem.
Wide range of interchangeable trim sizes.
Bellow seal available for positive stem sealing.
Comprehensively design and tested to ensure its optimum
performance for the tough process parameters specified.
Wide selection of actuators to meet most system requirements.
All testing performance to the requirements of ASME 16.34
Material certification available for all major component parts.
Full guarantee on design and performance.
All testing performance to the requirements of ASME B16.34
Tight closing for reliable control even when change in pressure / temperature are sudden and extreme.
Comprehensively designed and tested to ensure its optimum performance for the tough process parameters specified.
