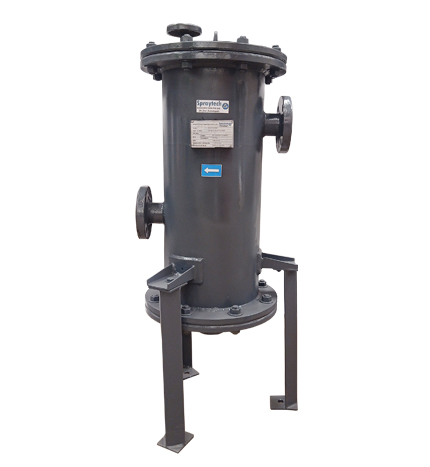

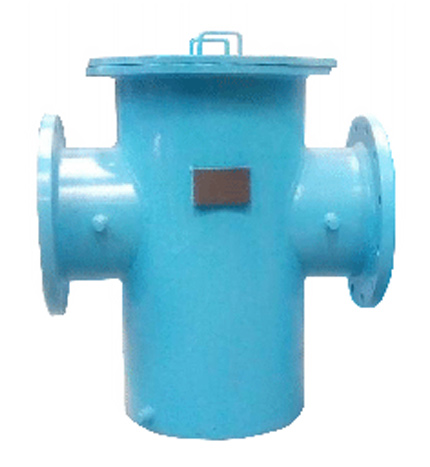

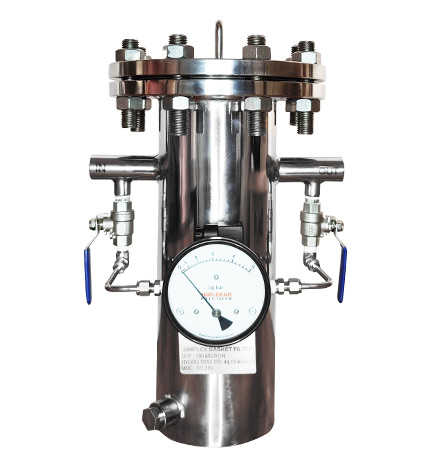

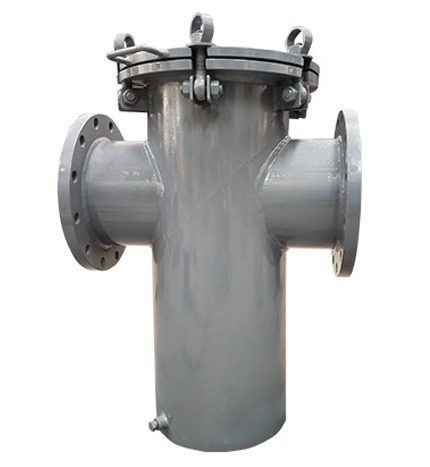

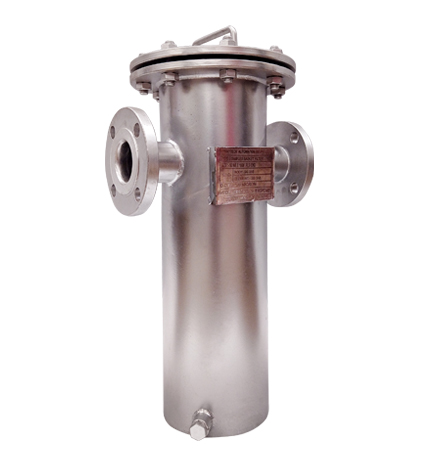

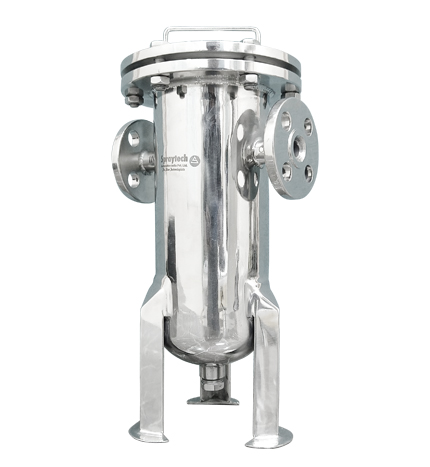

Simplex Basket Filter housing is generally used for separating coarse particles. It is use to retain particles of all sizes. Simplex Basket filter is constructed to have Inside to outside filtration capturing the particles inside the strainer element as well as outside to inside flow with considering the design parameters. The main parts of Simplex Basket filter are Filter Element, support ring, Internal perorated Element Support to assure prevent damage during high pressure drop across the filter during operation. The filtrate fluid can be collected at the outlet.
ADVANTAGES :
Low pressure drop
Easy to operate and maintenance
High filtration efficiency
Positive sealing to assure zero migration
Customized design available
High dirt holding capacity
Suitable for high pressure and temperature
Eyebolt and tri clover for quick opening
Multiple and Duplex with jacketed design
APPLICATION :
Water Treatment Industries
Chemical Industries
Ink Paint and Dyes Industries
Food Beverages and Dairy
Refineries & petrochemicals
Paint shop
Cement & fertilizers Industries
Steel & Textiles Industries
Cooling towers & Automobiles
1) Fabricated design with MOC in A 106 / A53 / IS 2062 / AISI304 / 316 / 304L / 316L A 312 TP 304 / 316 / 304L / 316L / A 240 TP 304 Hastelloy, alloy 20, high / low temp. Alloys. Nonferrous like Monel,Inconel etc.
2) Cast Design
A 216 Gr. WCB / A351 Gr. CF8[M] CF3[M] A 217 Gr. C5 / WC6 / WC9 / A352 LCB , LCC ,LC1 etc.
